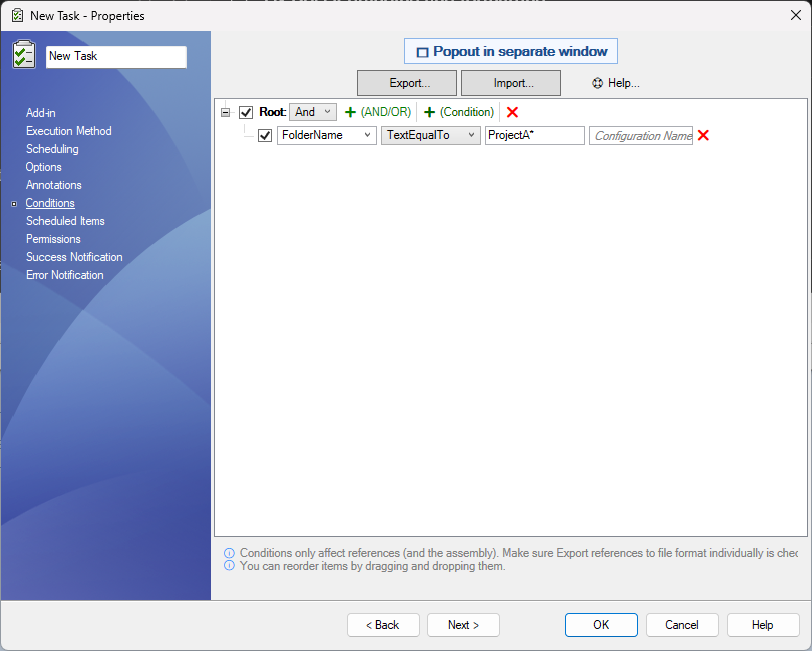

Conditions Setup Page
Conditions can be added to a task to include or exclude files from being processed.
The task will only process files that evaluate any of the set conditions as true.
Warning
Conditions are applied to references of the top-level assembly (parts or sub-assemblies).

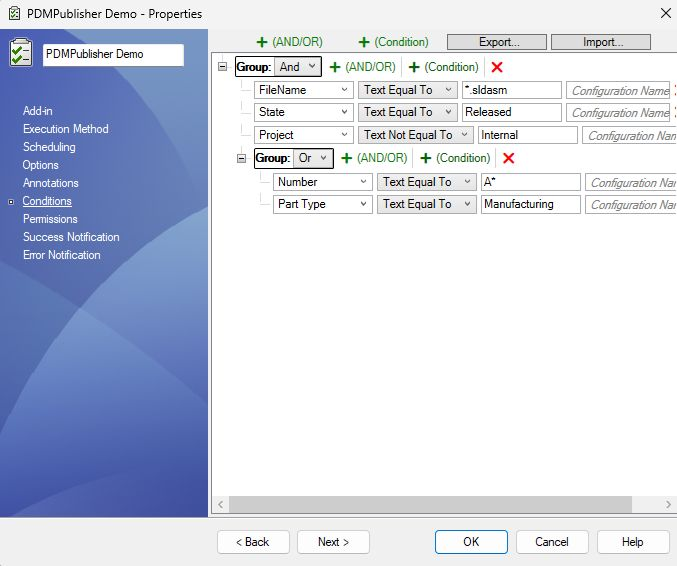

To add a condition, click the Add button.
You can also export and import conditions.
Condition Options
| Option | Description |
|---|---|
| Variable | Variable name with the run the condition on. |
| Condition Type | Operation type to process. |
| Value | Value to evaluate the condition against. |
| Configuration | Configuration: Specify the configuration from which to get the value of the variable. Use @ in general. |
Special Variable
The variable list in the condition column starts with several entries that are special variables. They contain:
- FileName: Filename of the file.
- Revision: Current revision of the file (What's locally cached).
- Version: Current version of the file (What's locally cached).
- Workflow: Name of the workflow the file is in.
- State: Name of the state the file is in.
Operation Types
| Operation | Description |
|---|---|
| TextEqualTo | Checks if the text is exactly equal to the specified value. Supports * as a wildcard. |
| TextNotEqualTo | Checks if the text is not equal to the specified value. |
| TextLengthLessThan | Checks if the length of the text is less than the specified value. |
| TextLengthBiggerThan | Checks if the length of the text is greater than the specified value. |
| TextContains | Checks if the text contains the specified value. |
| TextDoesNotContain | Checks if the text does not contain the specified value. |
| NumberEqualTo | Checks if the number is equal to the specified value. |
| NumberNotEqualTo | Checks if the number is not equal to the specified value. |
| NumberLessThan | Checks if the number is less than the specified value. |
| NumberBiggerThan | Checks if the number is greater than the specified value. |
| DateEqualTo | Checks if the date is equal to the specified value. |
| DateNotEqualTo | Checks if the date is not equal to the specified value. |
| DateLessThan | Checks if the date is earlier than the specified value. |
| DateBiggerThan | Checks if the date is later than the specified value. |
| YesOrNoEqualTo | Checks if the value is equal to either Yes or No. |
